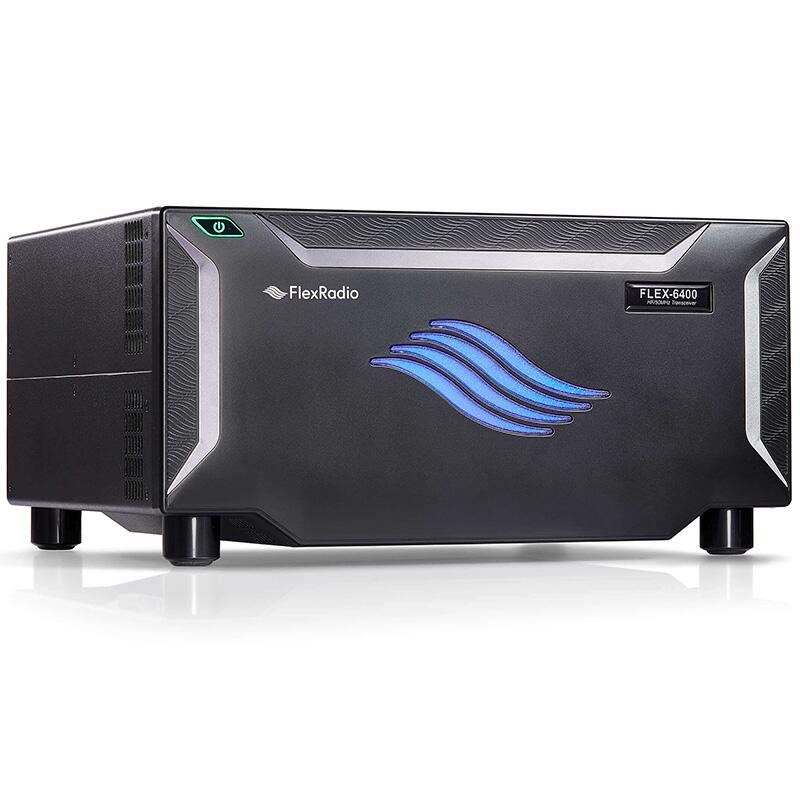

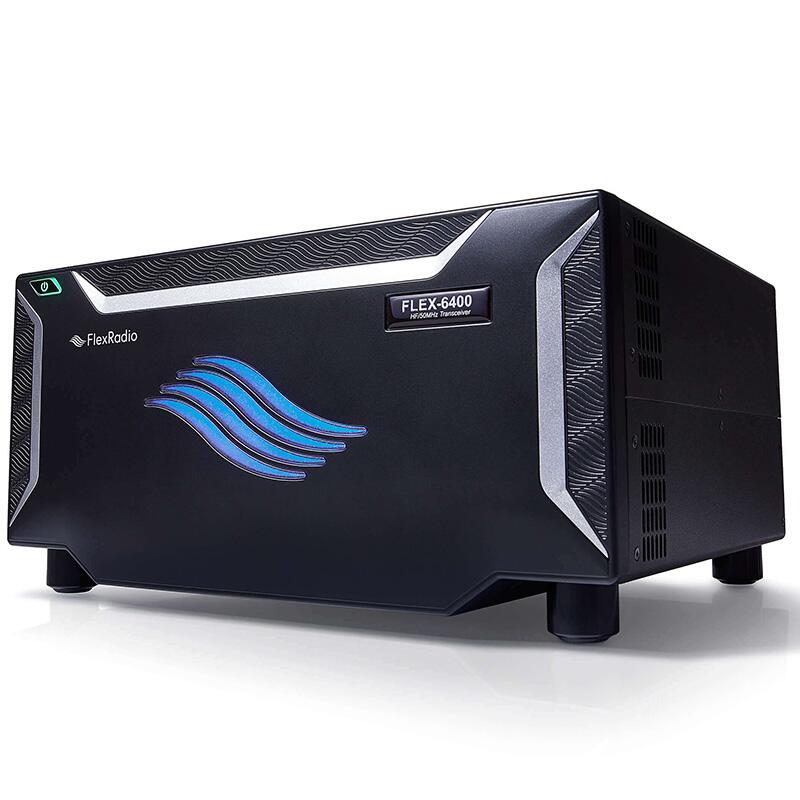

The FLEX-6400 offers the latest direct sampling SDR technology at an economical price for the general HF/6m operator yet it offers great performance for chasing DX and contesting.
With a PC, laptop, or Mac client you can utilize up to two 7 MHz spectrum/waterfall displays and independent receivers to revolutionize your view of the bands. Its two receivers can be placed simultaneously on any band and mode with instant QSY between VFOs. Digital mode operation is a dream with no sound cards, cables, or boxes needed.
FlexRadio’s industry-leading SmartSDR™ software offers compatibility across the entire FLEX-6000 Signature Series family to deliver continuous leveraged software enhancement. And you can use the latest SmartLink™ technology to access your radio virtually anywhere from any SmartSDR compatible client with only a login and password — even your iPhone.
* Mac OSX SmartSDR software is provided by third-party vendors*
Features
- 100W PEP HF-6m operation
- All modes/all bands
- Integrated Remote Operation with Maestro, PC/ Laptop, Mac, iPad® or iPhone®
- 2 Independent Band / Mode Receivers
- Full Duplex Cross-Band Operation
- Transverter Port
- Receive-Only Port
- Direct Sampling SDR 122.88 Msps – 16 bit
- 115 dB 2kHz RMDR
- >155 dB Dynamic Range
- Optional Antenna Tuner
- 10 MHz Reference Input
- Optional GPSDO Option for ultra high frequency precision and accuracy
- Optional MARS/CAP/SHARES TX Expansion Module
Full Specifications
Receiver
- Independent Band/Mode Receivers (Max): 2
- 1/2 kHz Reciprocal Mixing Dynamic Range (RMDR): 110/115 dB
- ADC Bits/Sampling Rate: 16/122.88 Msps
- Frequency Coverage: 30 kHz-54 MHz
- Amateur Band Preselectors: 3rd Order
- Cable-less Digital Audio (DAX/DAX IQ) Channels: 2/2
- Receive Only Ports (Base/Including XVTR Port): 1/2
- Full Duplex RX/TX Operation
Transmitter
- 160m-6m Transmitter Output: 1-100W(25W AM)
- Harmonic Suppression (Typ): < -60 dBc
- Transverter Ports: 1
- Transverter Frequency Coverage/Power: 100 kHz – 54 MHz/0 to +10 dBm
- Optional Integrated Automatic Antenna Tuner Range: 3:1 SWR
- Optional Continuous MARS/CAP Coverage with Extended Transmit Filter
General
- Modes1 SSB, CW, AM, SAM, FM, RTTY, DIGITAL
- Integrated Remote Operation (SmartLink)
- Maestro, PC, Mac, iPhone, & iPad Client Options
- Frequency Stability (0C – 50C) 0.5ppm (TCXO)
- GPS Disciplined Oscillator Optional 5 x 10-12 Over 24 Hours
- External 10MHz Reference Input
- Power Supply Requirements 13.8 VCDC +/- 15% (14 VDC Nom)
- Dimensions 6.74″H (17.1 cm) x 14″W (35.6 cm) x 13.25″D (33.7 cm)
Plug & Play Remote*
- No complex setup required
- Operate anywhere, any time
- Use a Maestro, Mac, iPad, iPhone or Laptop
- Across the country or across the world
Anywhere, Anytime, From Any Of These Devices:
With SmartLink and a FLEX-6400 you can operate your radio from almost anywhere! Just take an iPhone, iPad, Laptop, or Maestro with you and instantly connect to your radio using an Internet connection.
Best in Class Performance
- 115db RMDR
- No listening fatigue
- Ultra-Low Phase Noise
- Full Break-in QSK CW
- Brick Wall Filters
- Stunning transmit audio
Backed by an Amazing Suite of Software
- SmartSDR for Windows
- SmartSDR for Mac
- SmartSDR for iOS
- SmartSDR CAT
- DAX
*SmartLink Remote Requires SmartSDR V2.x License or Later. Requires an Internet connection.*
