FlexRadio FLEX-6600M ME ANTENNA TUNER-SDR Transceiver – ΠΛΗΡΩΜΗ ΑΠΟ 3 ΕΩΣ 60 ΔΟΣΕΙΣ ΧΩΡΙΣ ΠΙΣΤΩΤΙΚΉ ΚΑΡΤΑ

6,039.00€

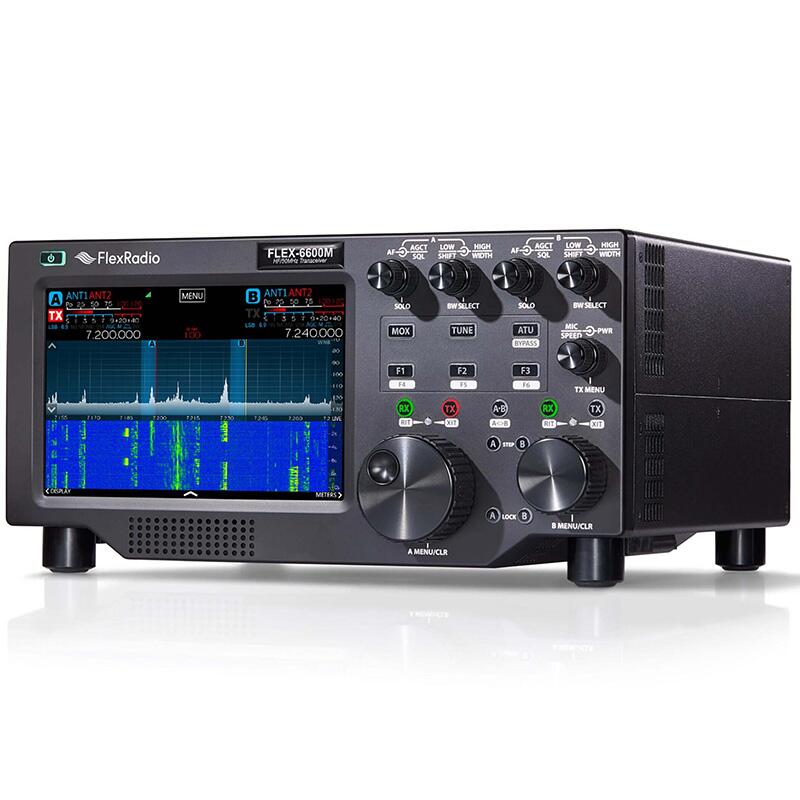

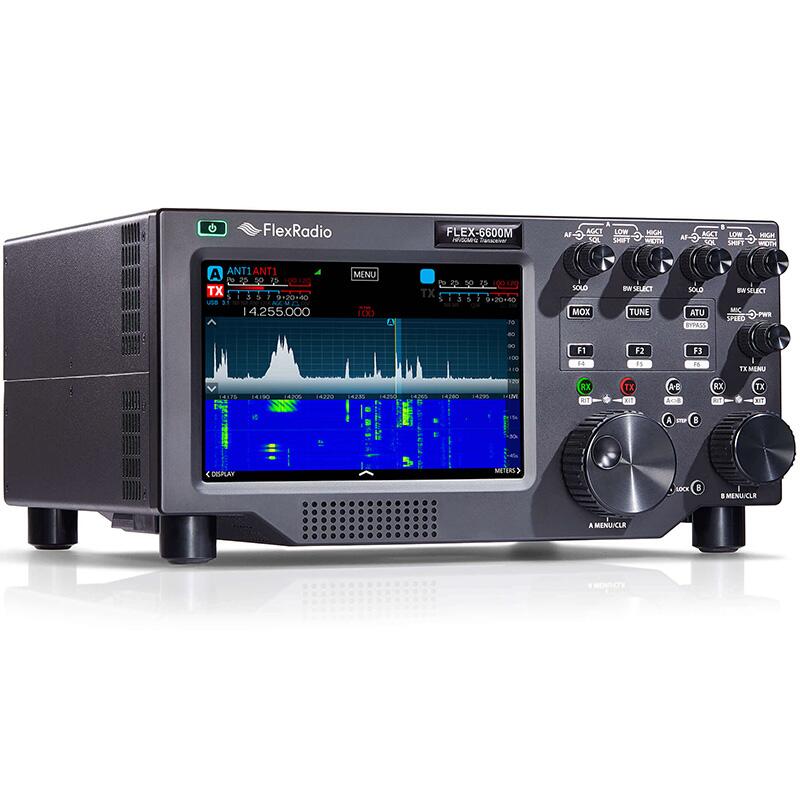

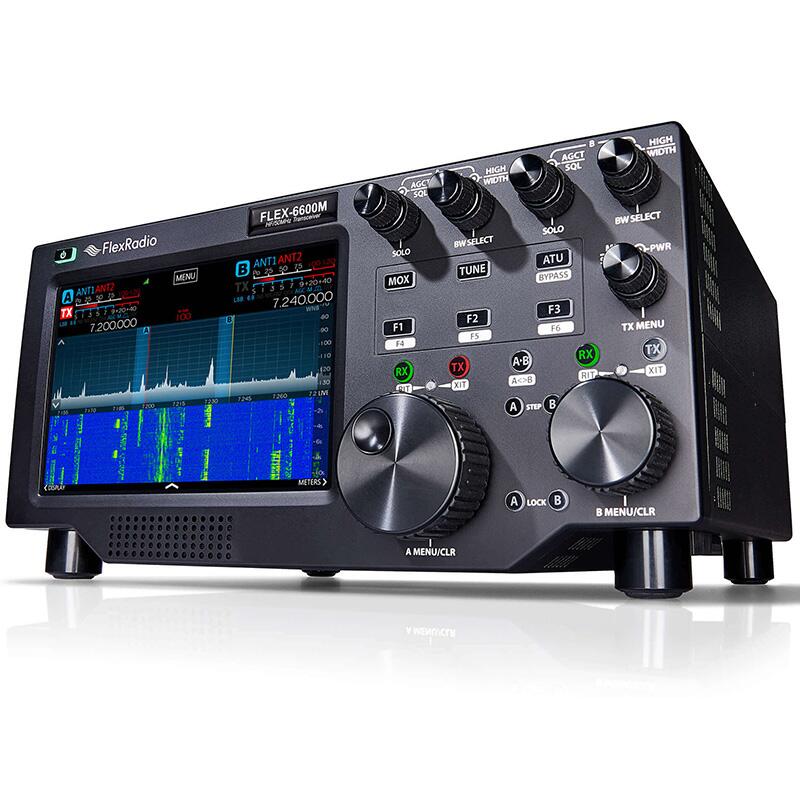

The FLEX-6600M integrates all FLEX-6600 capabilities with a stunning 8-inch 1920 x 1200 IPS WUXGA touchscreen display and ergonomic controls to deliver the top performing Software Defined Radio with a traditional radio interface. It delivers unmatched band awareness from the integrated display while providing an external HDMI compatible connection to a 1920 x 1200 resolution monitor for maximum spectral visibility. Influenced by top contest/DX operators, The FLEX-6600M symmetrical dual VFO controls are strategically placed to provide maximum productivity in chasing rare DX, winning contests, digital mode fun, or even casual operation. It’s all self-contained so just plug it in and operate — no PC, network or learning curve required. An antenna tuner is included.

Κατόπιν παραγγελίας

Κωδικός προϊόντος: 018813
Προσθήκη στα αγαπημένα

Περιγραφή

The FLEX-6600 offers the ultimate performance direct sampling SDR technology and the best value for the serious HF/6m operator.

Contest grade filters, ultra-low spurious emissions, and the ability to operate full duplex cross band on two antennas let you transmit on one band while receiving on another — no external equipment required. Even switch to synchronous diversity reception when needed to help you pick out the weak ones in the midst of QRM. By adding FlexRadio’s new Power Genius XL™ LDMOS solid-state amplifier a complete legal limit, all mode SO2R station is now practical with one radio, one amp and only three interconnect cables — half the cost and none of the complexity.

FlexRadio’s industry-leading SmartSDR™ software offers compatibility across the entire FLEX-6000 Signature Series family to deliver continuous leveraged software enhancement. And you can use the latest SmartLink™ technology to access your radio virtually anywhere from any SmartSDR compatible client with only a login and password — even your iPhone.

Features

  • 100W PEP HF-6M Operation
  • All Modes/All Bands
  • Integrated Remote Operation With Maestro, PC/ Laptop, Mac, iPad® Or iPhone®
  • 4 Independent Band / Mode Receivers
  • Full Duplex Cross-Band Operation
  • True Diversity Reception
  • Two Receive-Only Ports
  • Two Transverter Ports
  • Economical SO2R Solution – (OTSPR) Support In One Radio
  • Contest Band Filters: >50 dB Rejection
  • Direct Sampling SDR 245.76 Msps – 16 Bit
  • 115 dB 2kHz RMDR
  • >155 dB Dynamic Range
  • 10 MHz Reference Input
  • Optional GPSDO Option for ultra high frequency precision and accuracy
  • Optional MARS/CAP/Shares Expansion
  • Built In Antenna Tuner

All-in-One SDR includes all the features of the FLEX-6600 plus

  • Spectacular 8-Inch, 1920 X 1200 IPS Integrated Display
  • Touch Tune, Zoom, Pan, Controls At Your Fingertips
  • Ergonomically Optimized Controls With Full Dual VFO
  • Up To 14MHz Spectrum / Waterfall Bandwidth
  • Real-Time Spectrum / Waterfall
  • External Display Output – Full 1920 X 1200 Resolution
  • Internal Speaker

Full Specifications

Receiver

  • 4 Independent Band/Mode Receivers (Max)
  • 1 / 2 kHz Reciprocal Mixing Dynamic Range (RMDR): 110/115 dB
  • ADC Bits/Sampling Rate: 16/245.76 Msps
  • Frequency Coverage: 30 kHz-54 MHz
  • Amateur Band Preselectors: 7th Order Contest Bands, 3rd Order Other
  • Cableless Digital Audio (DAX/DAX IQ) Channels: 4/4
  • Receive Only Ports (Base/Including XVTR Ports): 2/4
  • Full Duplex RX/TX Operation
  • Simultaneous Receive on Two Antennas (e.g. 20m & 6m)
  •  Radio SO2R Operation – No External Equipment
  • Diversity Reception

Spectrum/Waterfall

  • Internal Touch Panel Display Size Diagonal: 8-inch (6600M)
  • Integrated Display Resolution: 1920×1200 (6600M)
  • External Display Resolution/Connection: 1920×1200/HDMI (6600M)
  • Spectrum/Waterfall Displays (Max): 4
  • Spectrum/Waterfall BW (Min/Max): 1.2 kHz to 14MHz
  • Spectrum Dynamic Range (Max Zoom In): >155 dB
  • Spectrum Resolution Bandwidth (Min): 1.6 Hz/px



Transmitter

  • 160m-6m Transmitter Output: 1-100W(25W AM)
  • Harmonic Suppression (Typ): < -60 dBc
  • Transverter Ports: 2
  • Transverter Frequency Coverage/Power: 100 kHz – 54 MHz/0 to +10 dBm
  • Integrated Automatic Antenna Tuner Range: 3:1 SWR
  • Continuous MARS/CAP Coverage Optional

General

  • Modes1 SSB, CW, AM, SAM, FM, RTTY, DIGITAL
  • Integrated Remote Operation
  • Maestro, PC, MAC, iPhone, & iPad Client Options
  • Internal Speaker/Power: 2W Class D (6600M)
  • Frequency Stability: (0C – 50C) 0.5ppm (TCXO)
  • GPS Disciplined Oscillator: Optional 5 x 10-12 Over 24 Hours
  • External 10MHz Reference Input
  • Power Supply Requirements: 13.8 VCDC +/- 15% (14 VDC Nom)
  • Dimensions: 6.74″H (17.1 cm) x 14″W (35.6 cm) x 13.25″D (33.7 cm)

Simply Beautiful

  • No PC required to operate the FLEX-6600M*
  • 8 inch 1920 x 1200 IPS Display
  • Up to four independent receivers
  • Up to four 14MHz spectrum displays
  • Optimized workflow
  • Ergonomically spaced/single-function controls

Anywhere, Anytime, From Any Of These Devices:

With SmartLink and a FLEX-6600, you can operate your radio from almost anywhere! Just take an iPhone, iPad, Mac, Laptop, or Maestro with you and instantly connect to your radio with virtually no setup required.

Plug & Play Remote**

  • No complex setup required
  • Operate anywhere, any time
  • Use a Maestro, Mac, iPad, iPhone or Laptop
  • Across the country or across the world



Best in Class Performance

  • 115db RMDR
  • No listening fatigue
  • Ultra-Low Phase Noise
  • Full Break-in QSK CW
  • Diversity Reception
  • SO2R in a box
  • Brick Wall Filters
  • Stunning transmit audio

Backed by an Amazing Suite of Software

  • SmartSDR for the M Model Radio
  • SmartSDR for Windows
  • SmartSDR for Mac
  • SmartSDR for iOS
  • SmartSDR CAT
  • DAX

*A PC is required for use of 3rd party software such as loggers and digital modes programs.
**SmartLink Remote Requires SmartSDR V2.x License or Later. Requires an Internet connection.
