Main features
- Immense functionality for a reasonable price
Designing each our device, we try to reach the best balance between the price and functionality
- Full support of the ExpertSDR2 software
Continuously growing and improving ExpertSDR2 software is 100% compatible with the SunSDR2 QRP and will continue to support it for many years to come, for free!

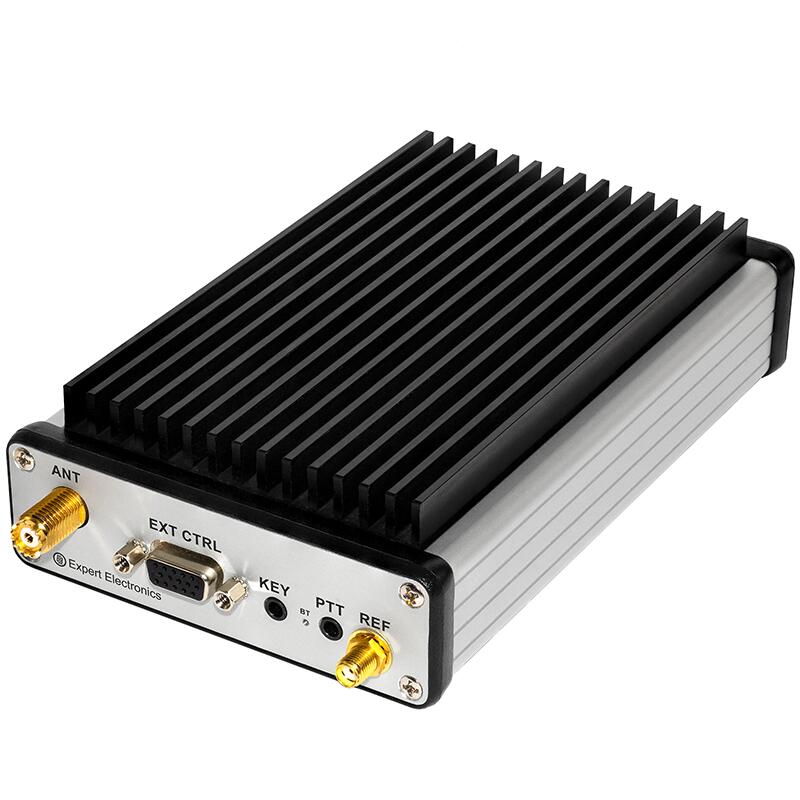

- External control connector
Connect up to 8 external devices to 8 powerful keys with open collectors, such as PAs, external filters, rotate antenna devices etc.
- Remote control operation
Using it, you connect PTT and CW-key to the E-Coder panel. Microphone and E-Coder are connected to the remotely set up PC
- TCI interface
Use it for seamless connection with third-party software, the list of software with TCI support
- No need for an external soundcard
The SunSDR2 QRP does not require an external sound card and audio cables, just plug your headphones in the transceiver and listen to the air
- 16-bit ADC at 122.88 MHz
The SunSDR2 QRP has the best ADC in its price range which provides 122 dB BDR
- Sample rates: 48-384 kHz
At the same time, you can use a 60 MHz wide bandscope + 2 software RXs, each has a SubRX
- Special mode for 768 kHz or 960 kHz sample rate, only for 1 RX + bandscope at the same time
- Supports 4M band only for RX in the 2nd Nyquist zone
Application field
- HAM amateur HF transceiver
- Remote operation just for fun and for contests
- Spectrum analyzer with the wide bandscope up to 60MHz
- Record IQ files and listen to them afterward
The ExpertSDR2 minimal system requirements:
- 2 or 4 core CPU Intel Core i3 or Core i5;
- 8 GB RAM;
- 40 GB free space on the HDD/SSD for the ExpertSDR2 and accompanied programs;
- 17′ or bigger monitor;
- video card with OpenGL 1.5 or higher;
The ExpertSDR2 software supports Windows 7-10 32/64 bit, Linux (Ubuntu/Kubuntu 18.04 x64), and macOS 10.14 Mojave and higher.

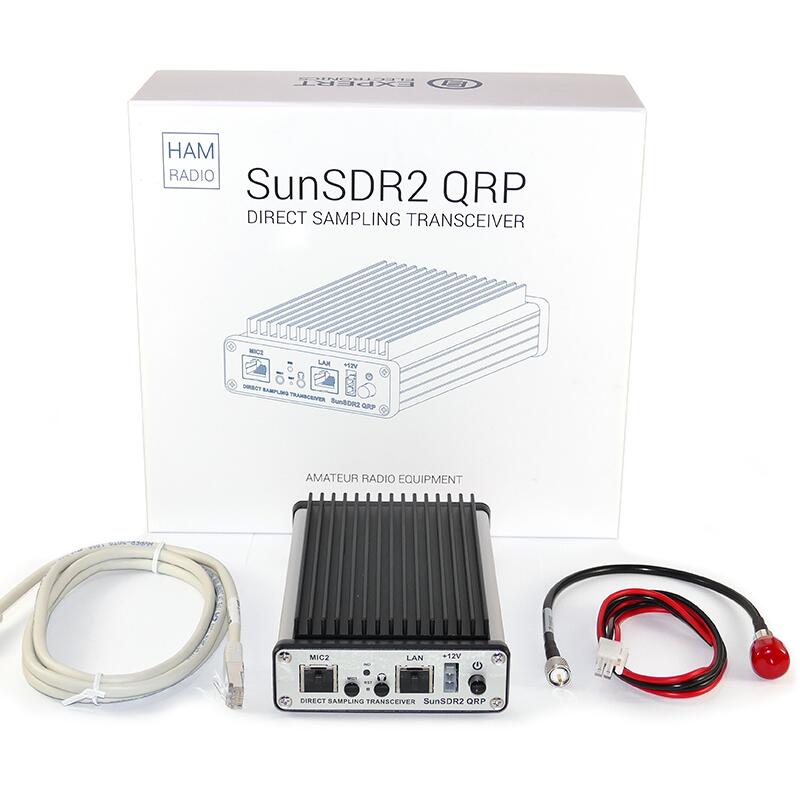

Basic configuration:
- SunSDR2 QRP transceiver
- LAN-cable (1.8m)
- Power supply cable
- RF Cable Mini UHF — HF (PL259) 1Ft (0.3m 1 pc.)
Additional accessories:
- E-Coder Plus or E-Coder control panel for comfortable tuning
Specifications:
- RF ADC, bit @ MHz: 16 @ 122.88
- ADC type: LTC2165
- RX Frequency range, MHz: 0.1…55; 70…70.5
- Undersampling, MHz: 0.1…500
- Independent software receivers: 2 + 2 SubRX
- Sample rate, kHz @ bit: 48; 96; 192; 384 @ 24
768; 960 @ 16 (only RX1)
- Bandscope, MHz: 61
- RX HF filters, MHz: LPF: 58 + 8 x BPF
- RX VHF filters, MHz: HPF: 68 + BPF for 4M
- BDR on HF, dB: 122
- Sensitivity, uV: 0.1
- DR IMD3, not less dB: 100
- RMDR, dB: 107
- ATT/Preamp, dB: -20; -10; 0; +10
- TX Frequency range, M: All amateur bands 160-6
- Output power on HF, W: 5 (up to 8)
- Output power on 6M, W: 5
- Local oscillator TCXO, MHz +/- ppm: 16 +/- 2.5
- External 10 MHz oscillator input: +
- Built-in audio codec, bit: 24
- RF input/output: 1 (Mini-UHF)
- PC interface: LAN 100 Mbit
- DC voltage range in RX/TX, V: 8…15 / 10…15
- Recommended DC voltage, V: 12
- Current consumption RX/TX, A: 0.3 / 3
- Power consumption RX/TX, W: 3.6 / 36
- Operating temperature, °C/°F: 0…+50/ +32…+122
- Dimensions L x W x H, cm/inches: 18.5 x 10.6 x 4.5/ 6.5 x 3.94 x 1.38
- Weight, kg/lbs: 0.8/ 1.8
Specifications are subject to change without notice or obligation and specifications are only guaranteed within the amateur radio bands.
